Installation

[en] Install door lock

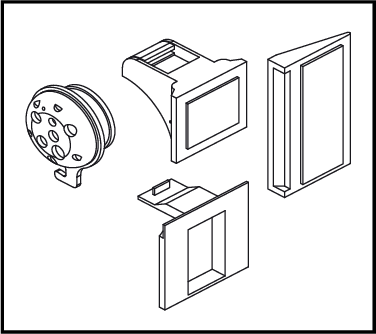

200117_panel_lock_comp_overview.eps

  1. Avis

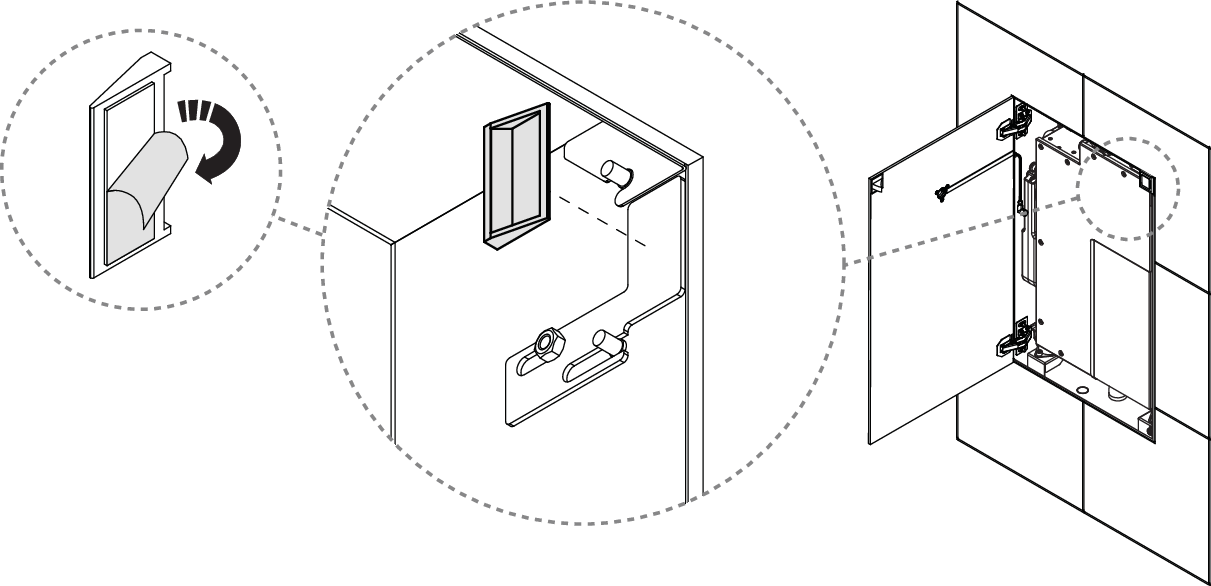

    [en] Clean the surface before attaching the bracket.

    191009_R3_Indo_shower_unit_inst_07.eps

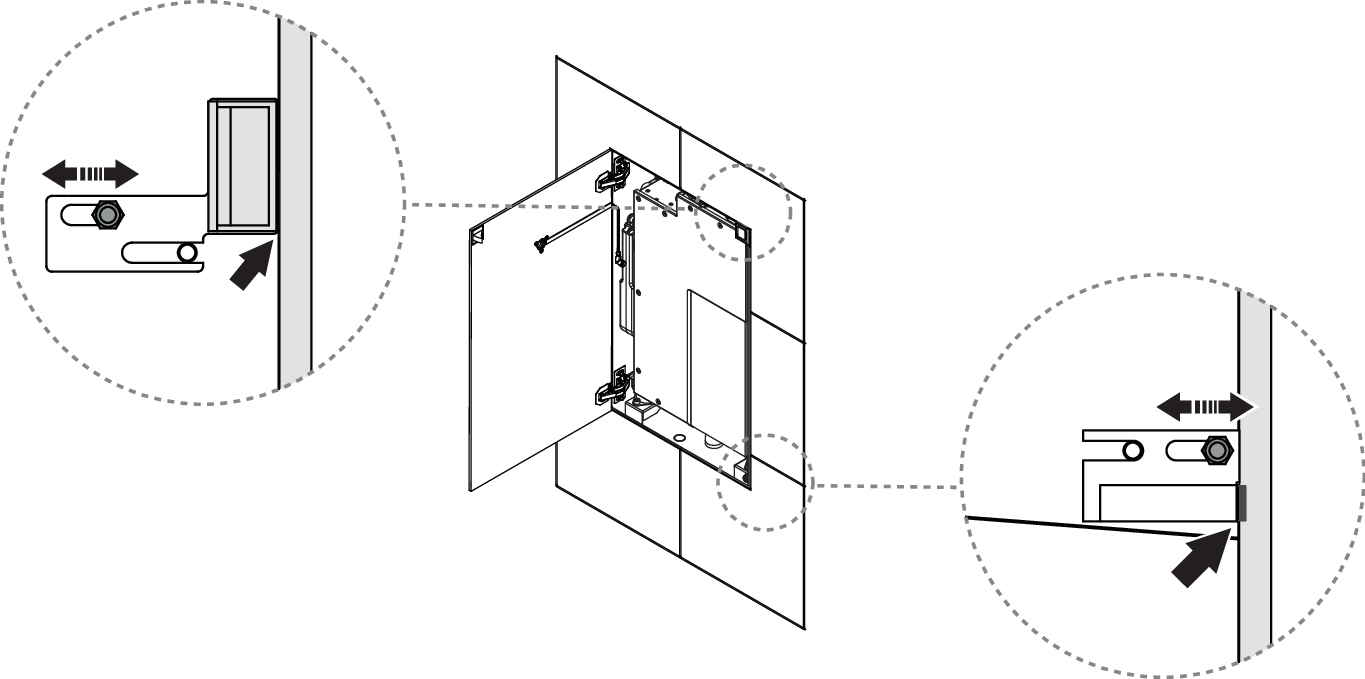

  2. [en] Adjust until edge aligned to edge.

    [en] Adjust until edge aligned with magnet.

    191009_R3_Indo_shower_unit_inst_door_lock.eps

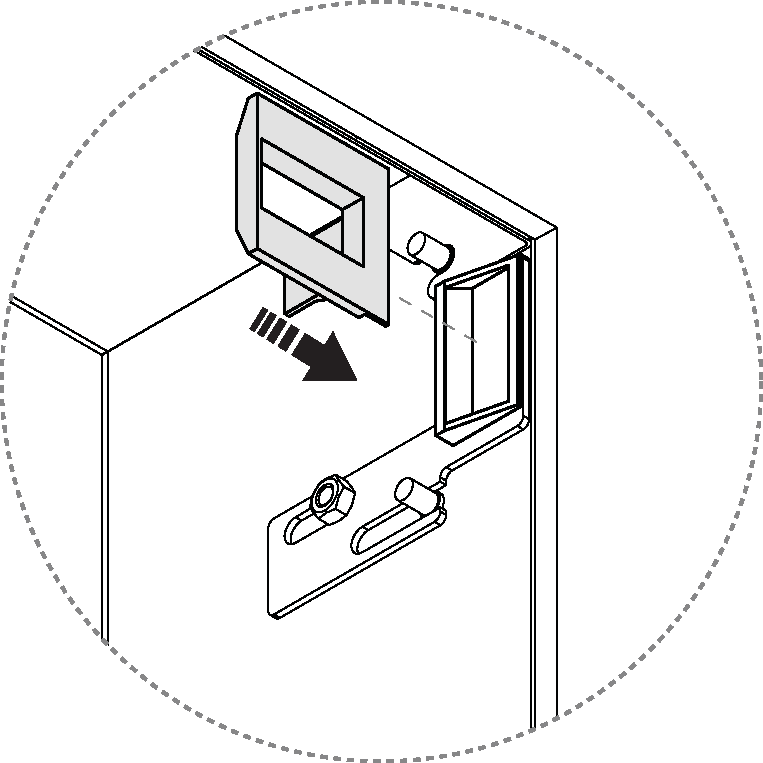

  3. [en] Attach the positioning template to the bracket.

    190716_shower_unit_inst_door_lock_2.eps

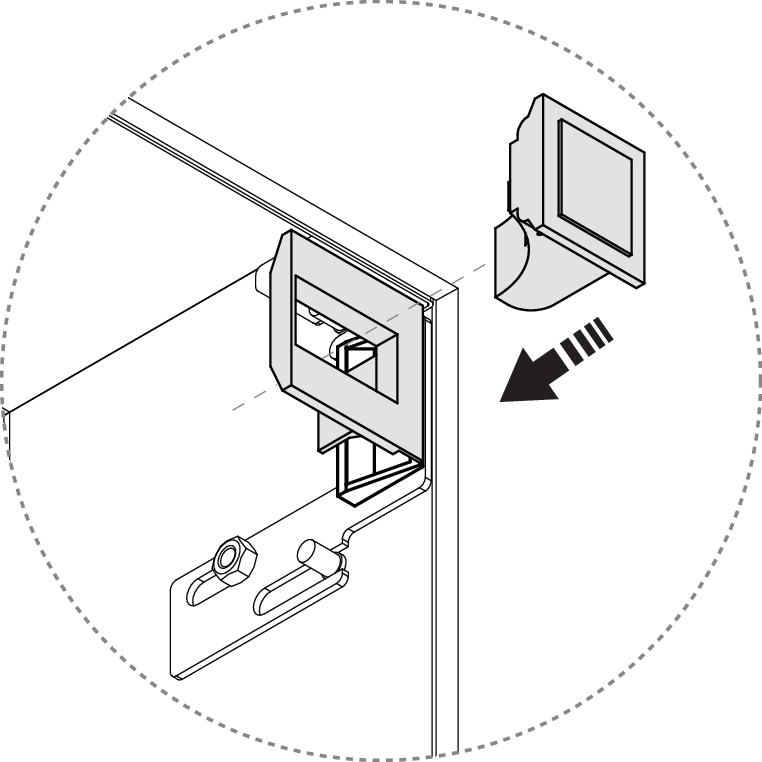

  4. [en] Place the lock in the positioning template.

    190716_shower_unit_inst_door_lock_3.eps

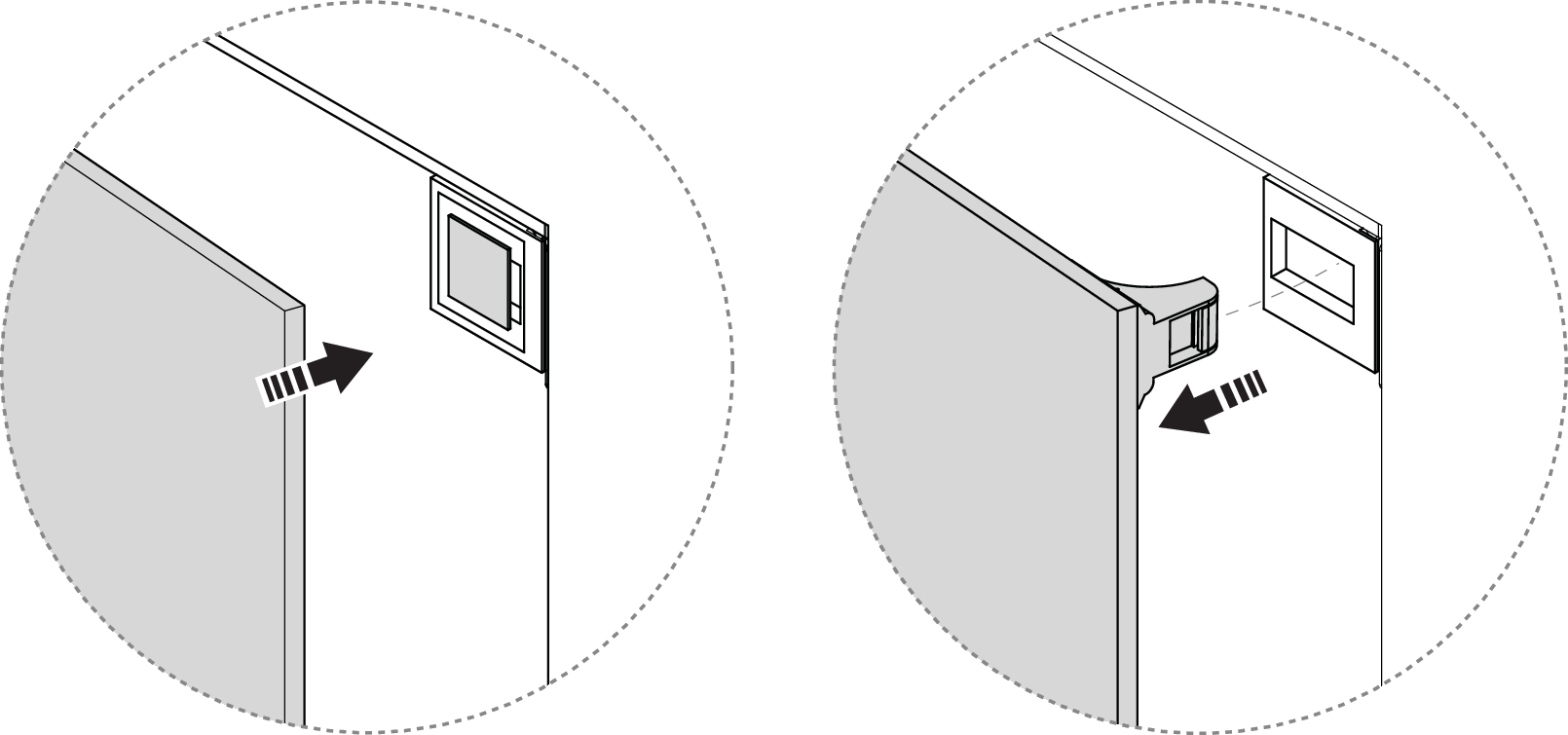

  5. [en] Close the door to attach the lock to the door.

    190716_shower_unit_inst_door_lock_5.eps

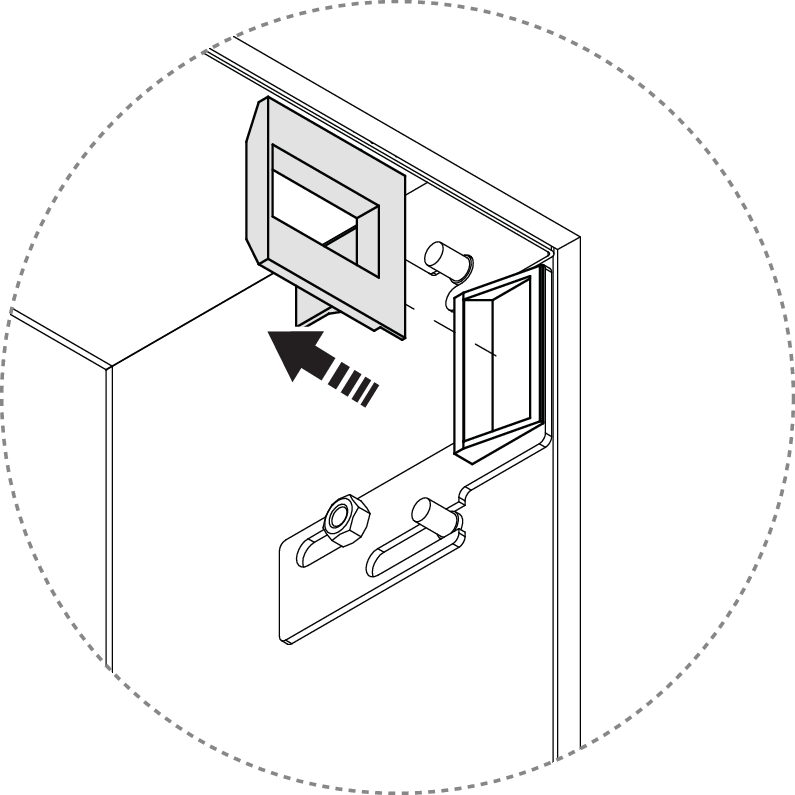

  6. [en] Remove the positioning template.

    190716_shower_unit_inst_door_lock_7.eps

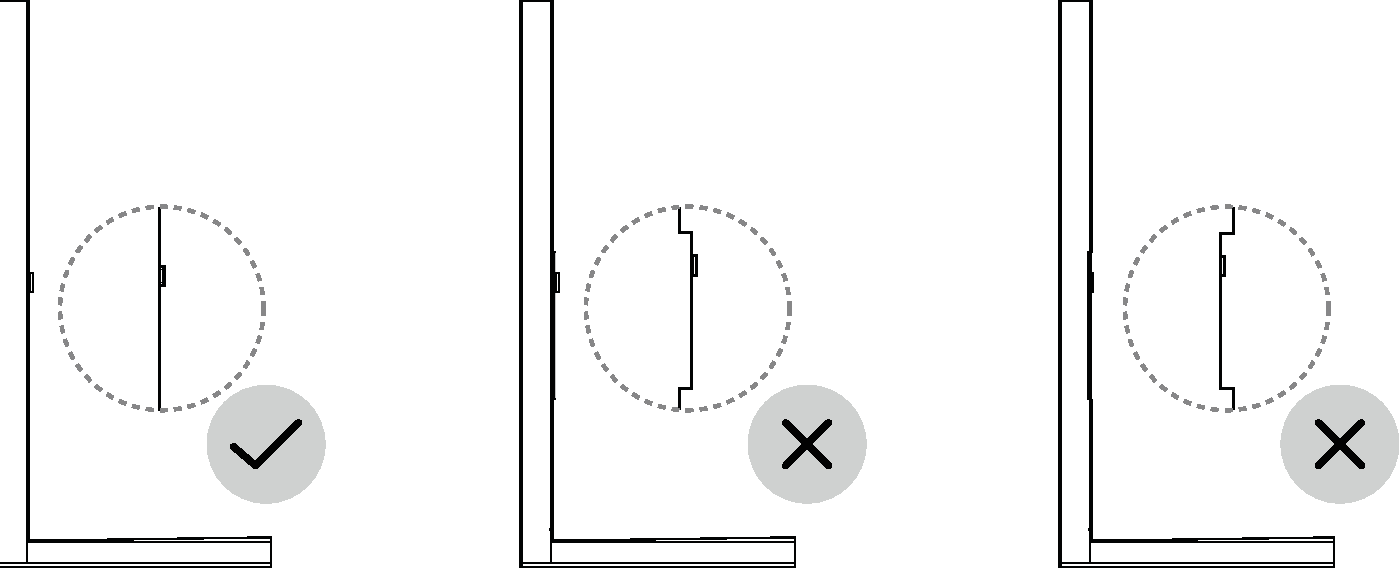

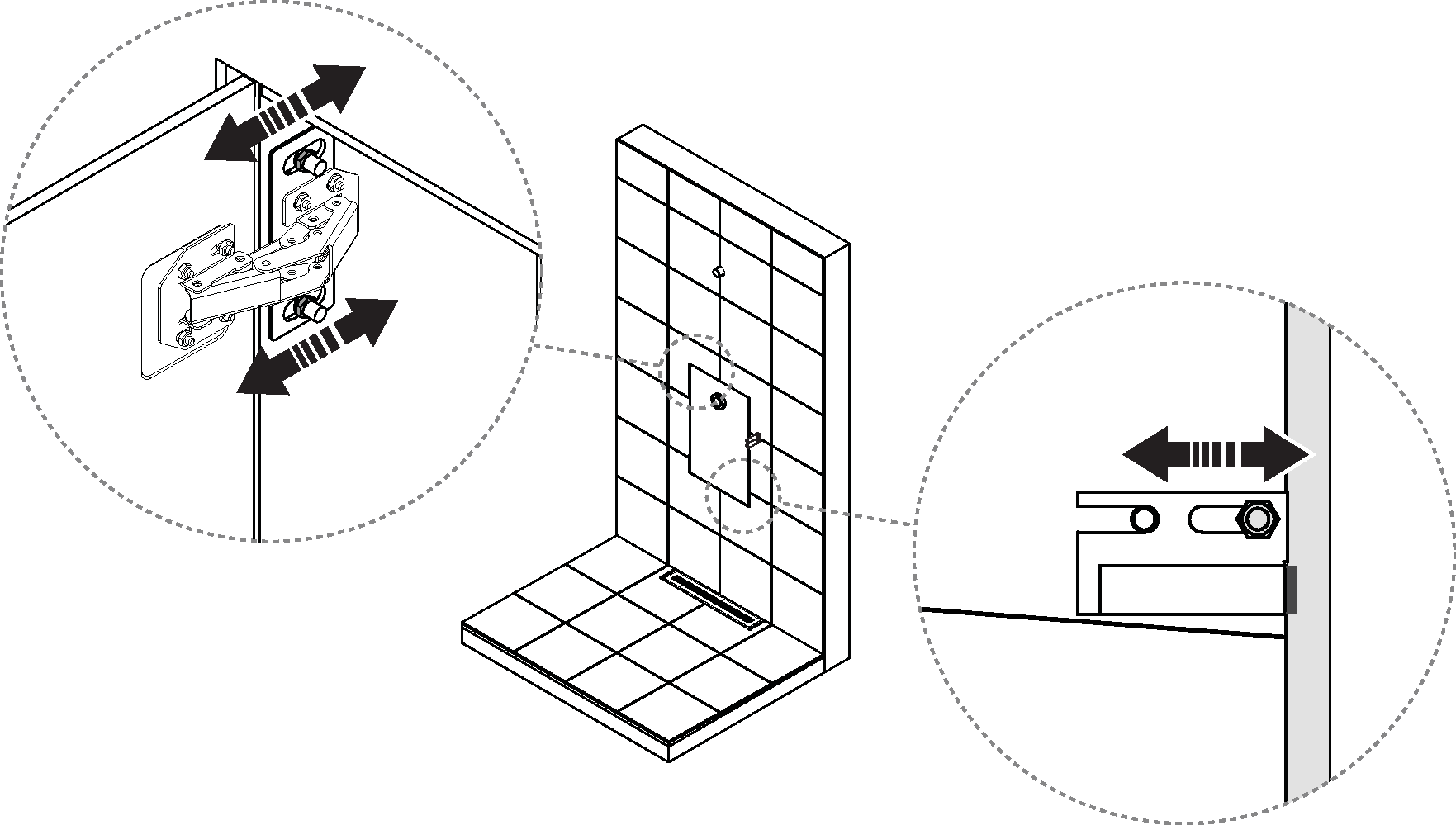

  7. [en] Adjust door depth.

    190814_shower_unit_inst_08.eps
    200117_panel_lock_align_door_2.eps

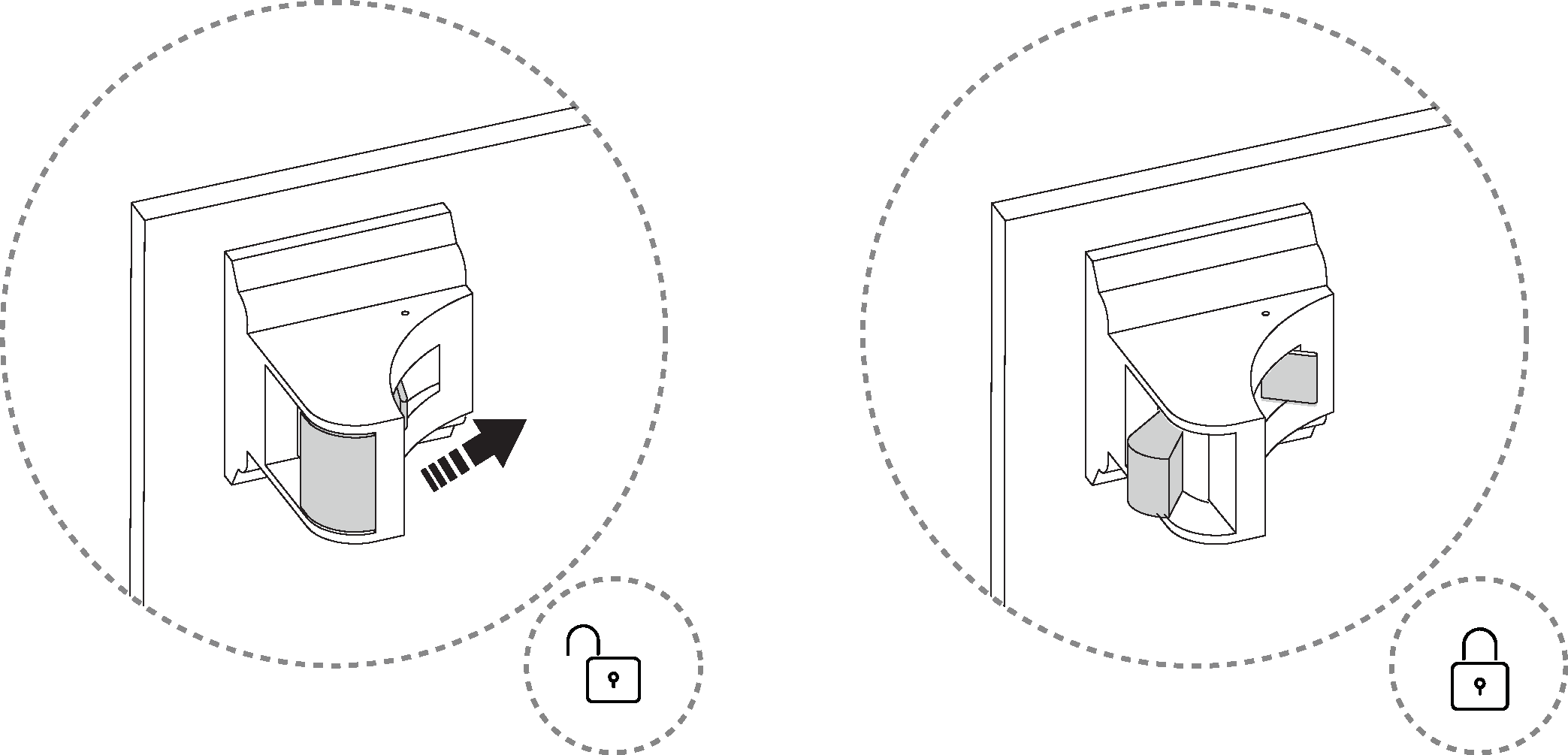

  8. [en] Set into locked position.

    210420_shower_unit_inst_door_lock_2.eps
