Installation

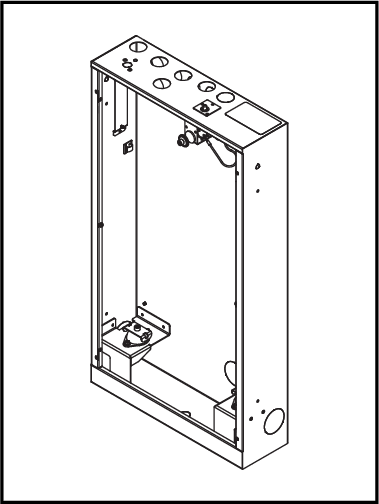

[en] Install Wall Box
210304_Remote_Cabinet_install_comp_overview.eps

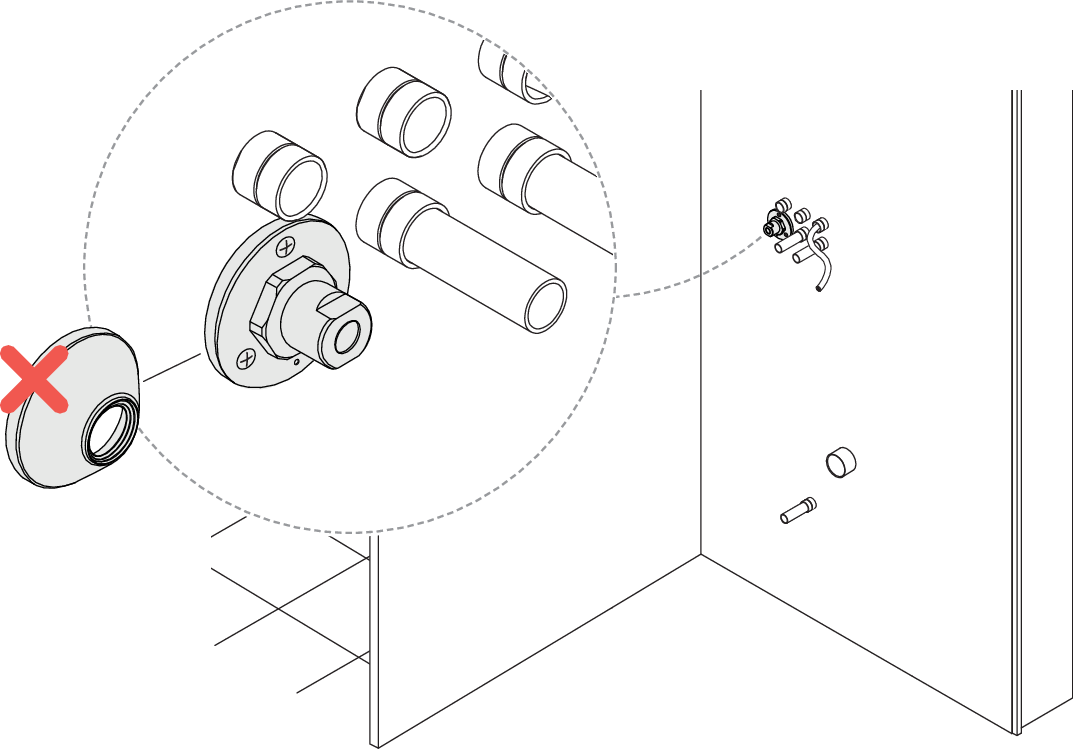

  1. [en] Attach the diverter pipe to the provided LK mixer bracket. This is important to prevent the pipe from detaching from the diverter. Follow the supplier's instructions.

    241202-Cabinet_Mixer_bracket.eps

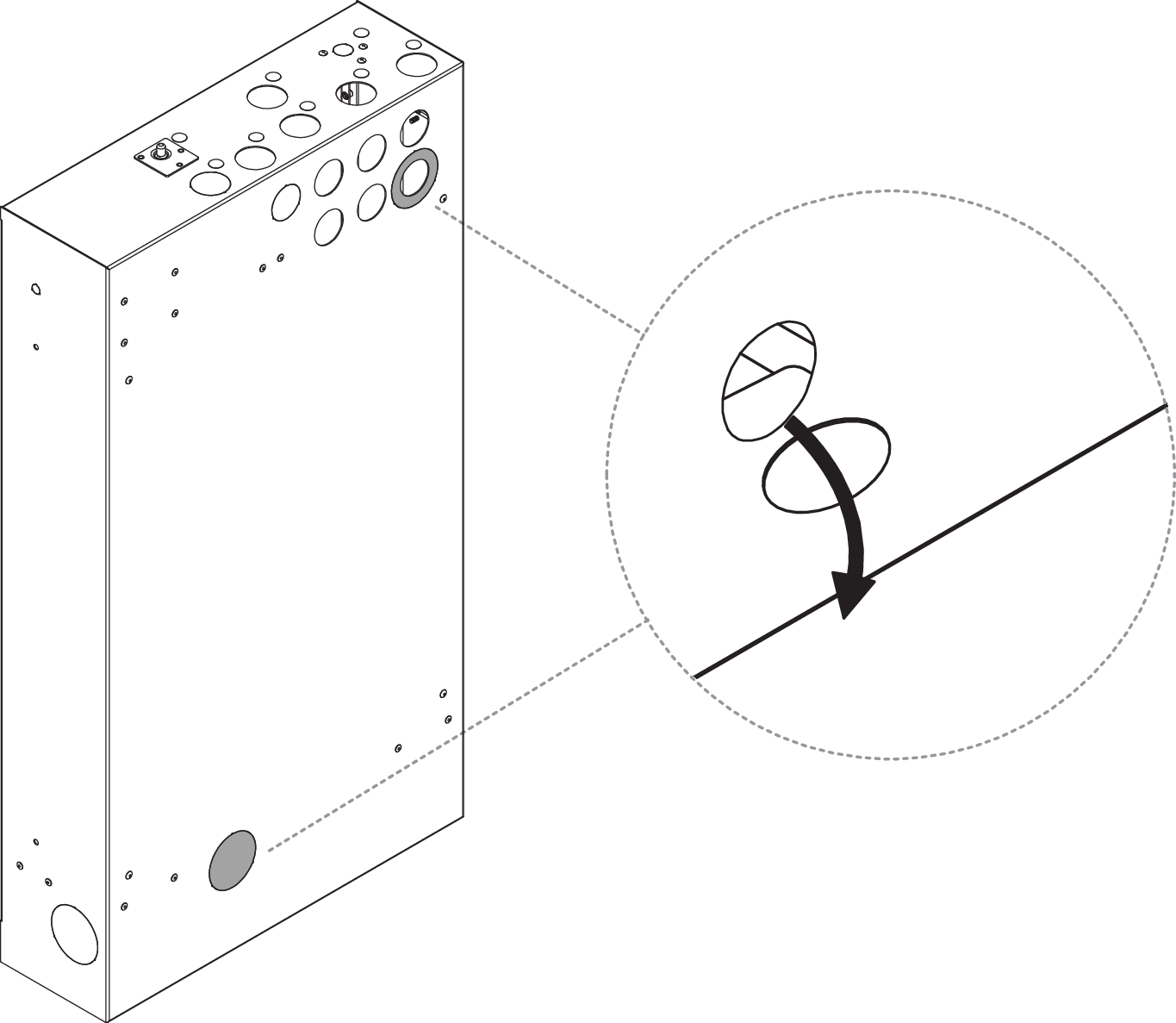

  2. [en] Punch holes in the sheet metal on the back of the Wall Box to fit the mixer bracket and the drain pipe.

    210701_Remote_Cabinet_wall-mounted_inlet_holes_overview.eps
    Figure 69. [en] Only valid for Orbital Audio

    [en] Punch out a hole in the perforated plate for the exciter cable.

    [en] Only valid for Orbital Audio

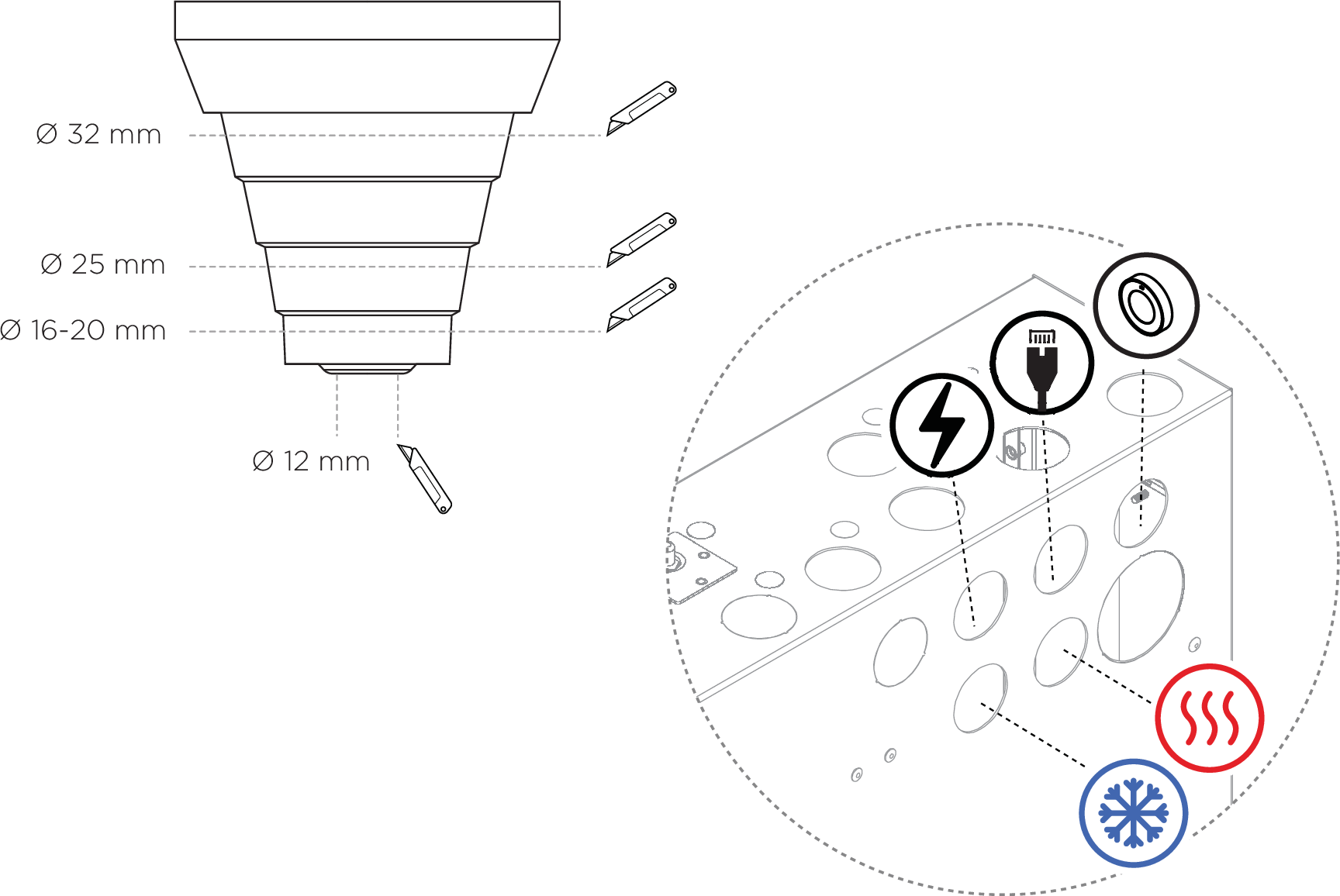

  3. Coupez les cônes en fonction du diamètre du conduit.

    210118_Remote_Cabinet_wall_mount_cut_cone_millimeter.eps

  4. [en] Cut the cone to fit the drain pipe (50 mm).

    210118_Remote_Cabinet_wall_mount_cut_drain_cone_millimeter.eps

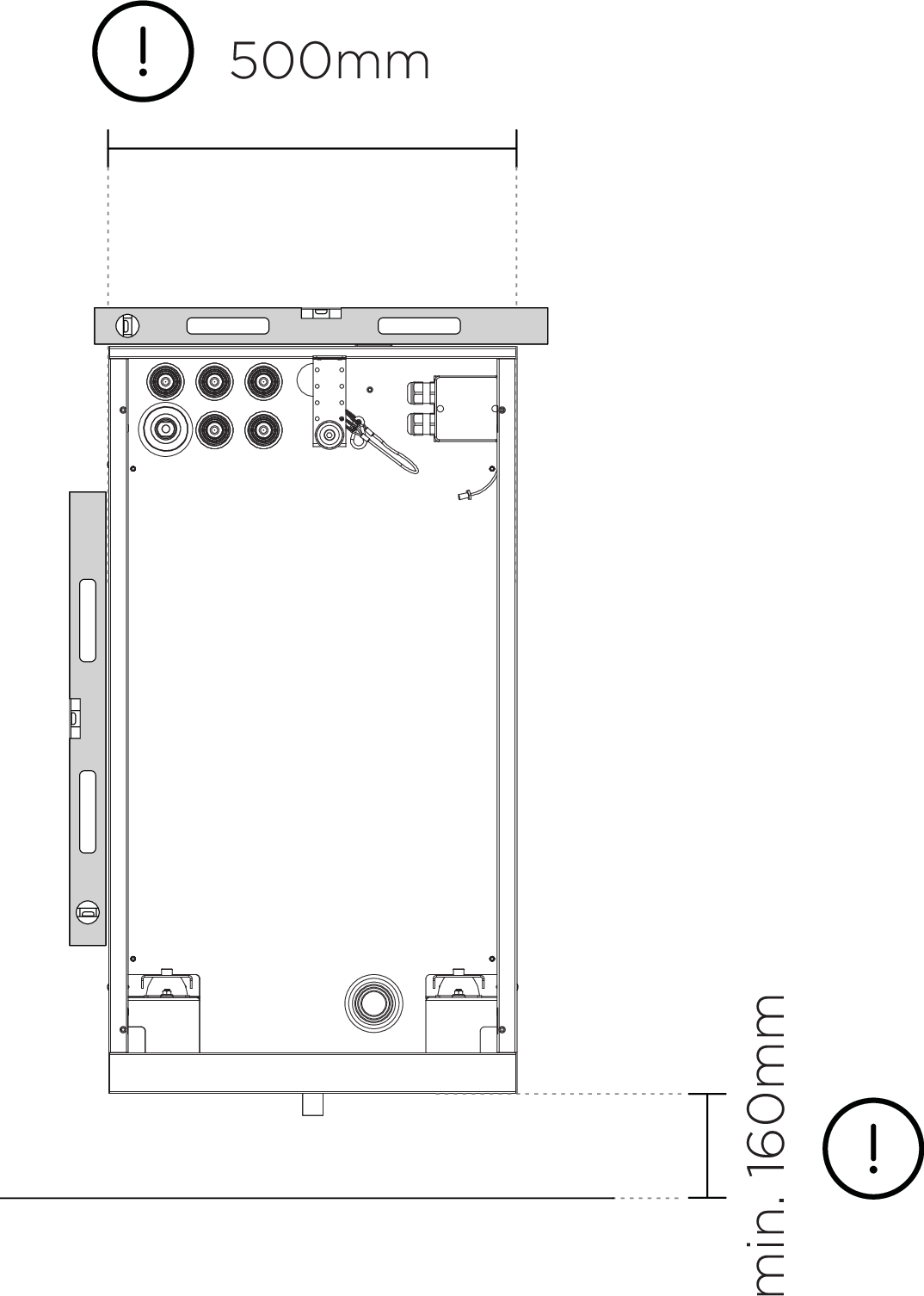

  5. [en] The weight of the Shower Core is approx. 25 kg. The wall construction must be able to support this load.

    210314_Remote_Cabinet_wall_mounting_millimeter.eps

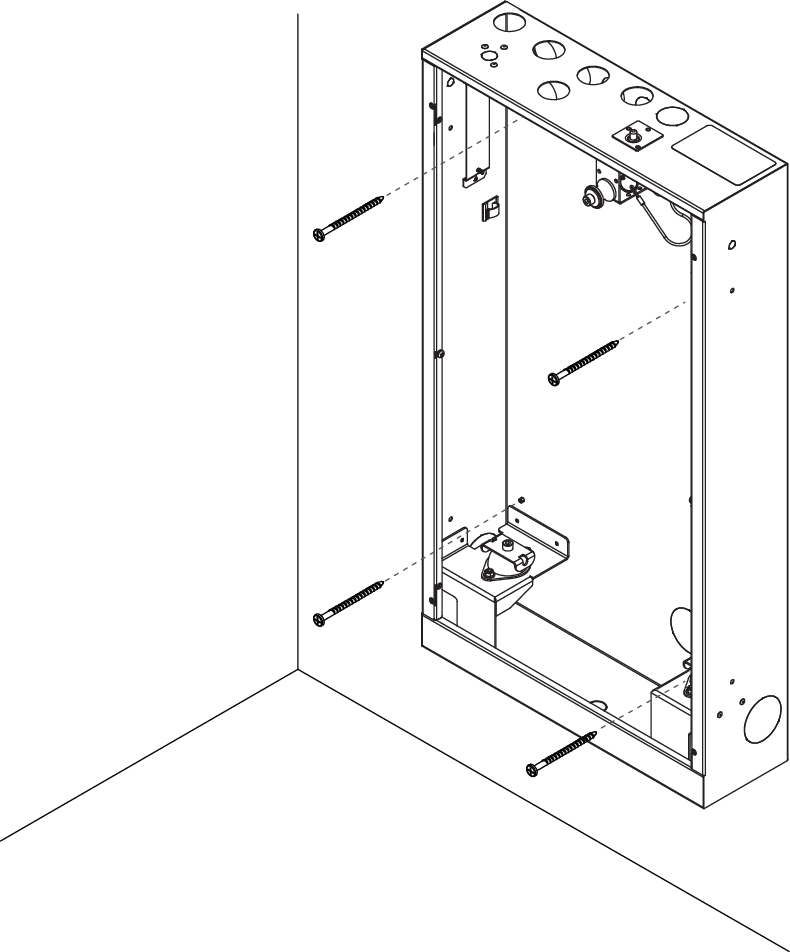

  6. [en] Mount the Wall Box to the wall.

    Note

    [en] Two variants of screws are included in the kit from LK, short and long, depending on the wall.

    210201_Remote_wall_mounted_installation_2.eps

    [en] x4

    [en] Pan head stainless steel screw

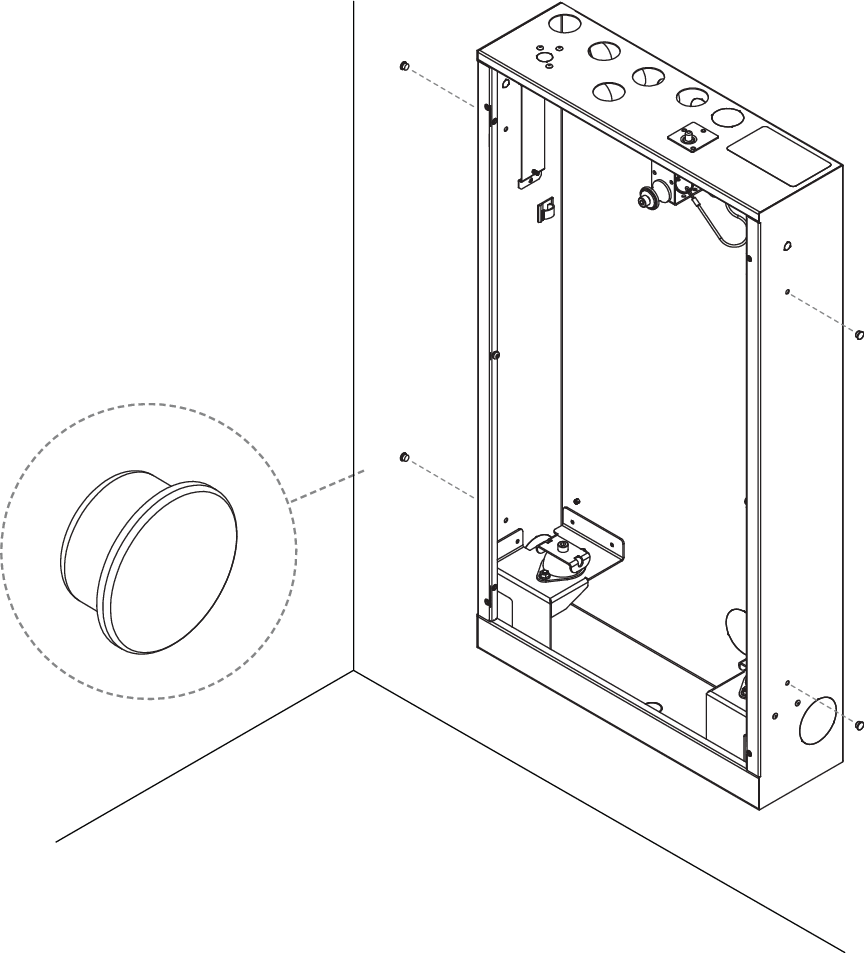

  7. [en] Cover the unused screw holes in the sides of the Wall Box with the provided LKS plugs.

    240220_Cabinet_LKS_Plugs_.eps

    [en] x4

    [en] LKS Plug
