Installation

Install Pump

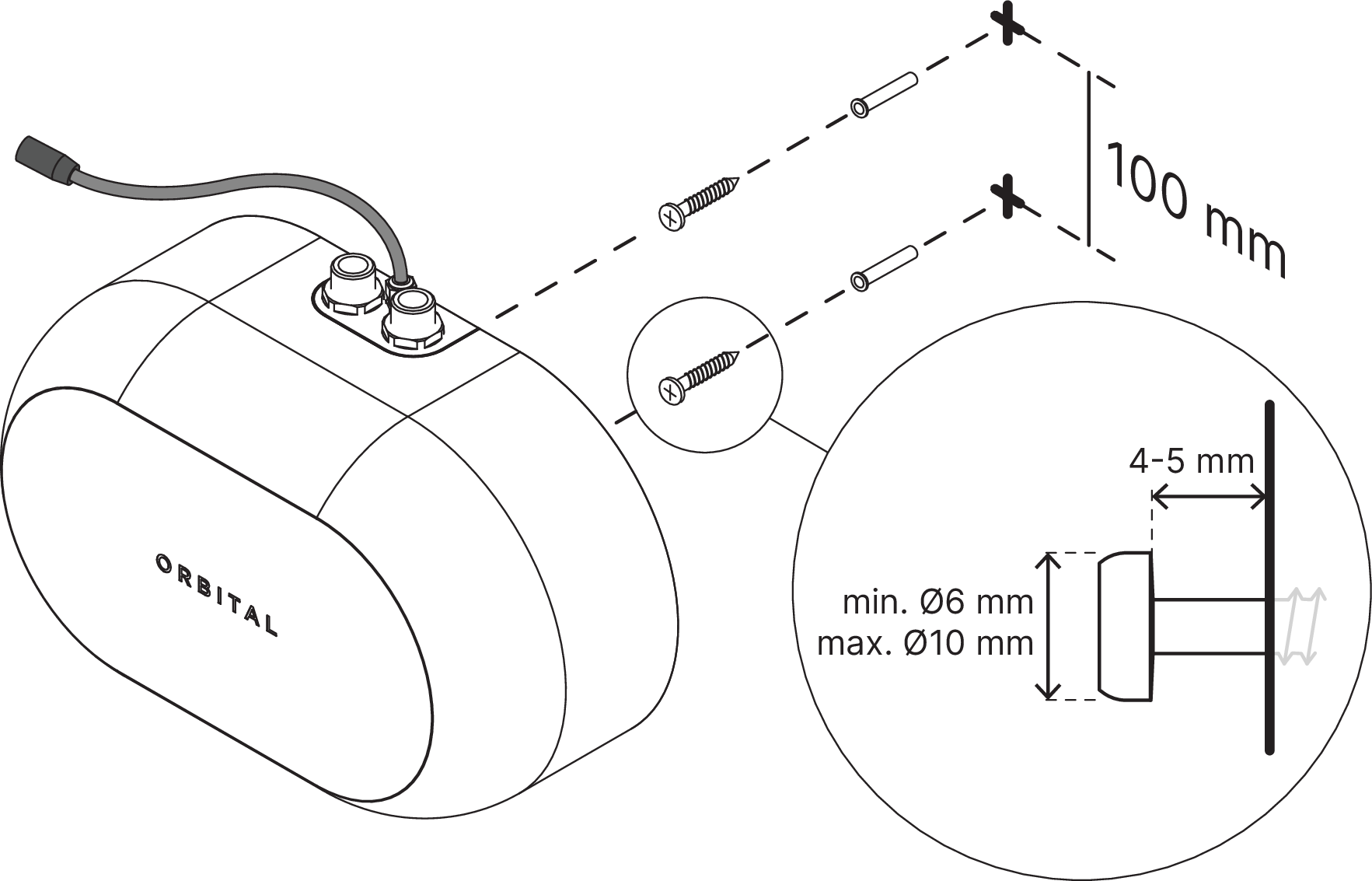

  1. Measure and pre-drill holes for the wall bracket.

    240105_Measurements_pump.eps
  2. Insert the plugs and screw the wall bracket in place.

    231027_mount_bracket_for_pump.ai
  3. Attach the Pump by threading the back piece onto the bracket from the left and sliding the Pump in place.

    231027_Attach_pump_to_bracket.ai
  4. Lock the Pump in place by tightening the screw on the left side with a straight 4 mm Allen key. Add the rubber plug to cover the hole.

    231027_mount_pump.ai
