Installation

[en] Pipes & connections

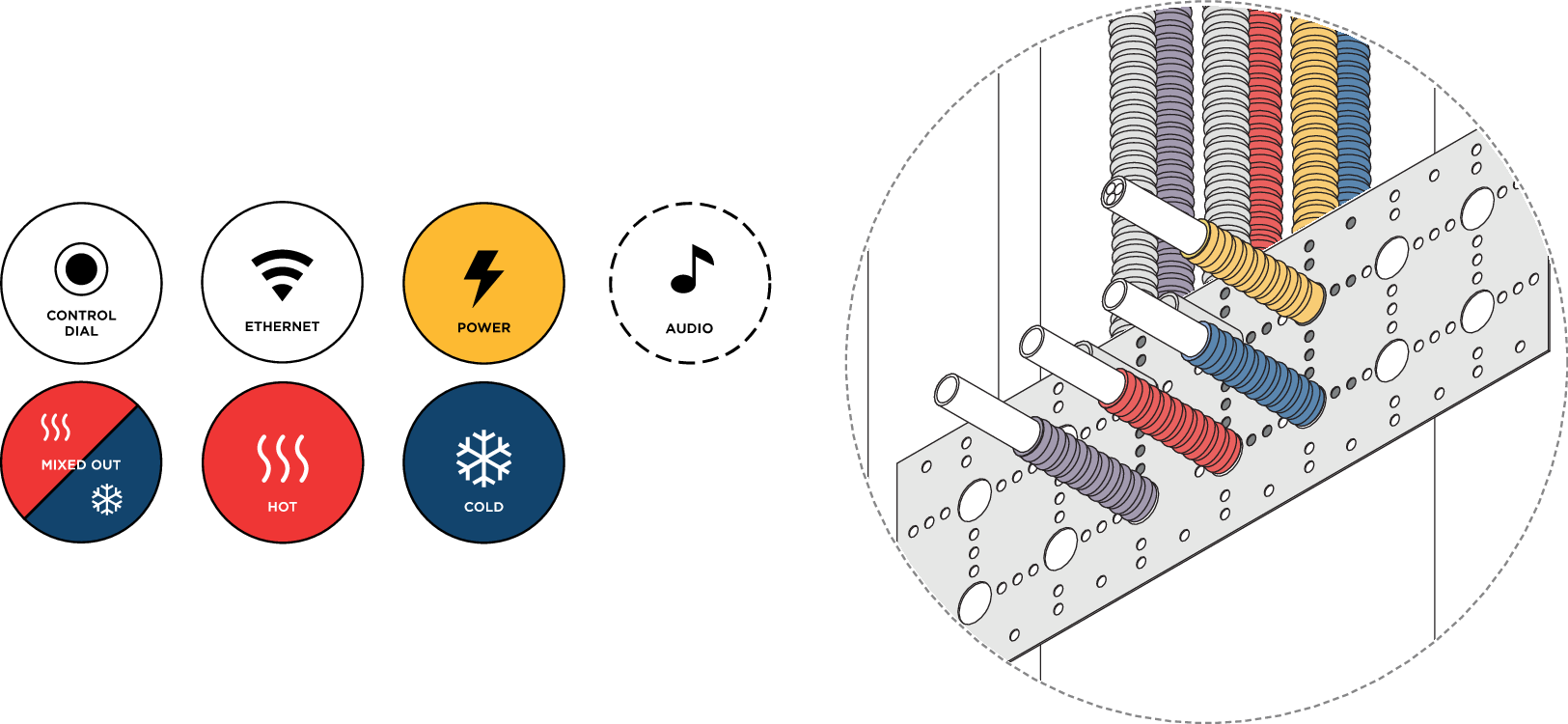

  1. [en] Prepare the incoming water and electricity. Draw cables and hoses and use pipe clamps for anchoring. Use the pipe clamps in the kit to anchor the piping for the shower head and hand shower.

    Avis

    [en] Conduits for incoming water and electricity are supplied by the customer.

    240311_Cabinet_Incoming_Connections.eps
  2. 210521_retainer_conduit_comp_overview.eps

    Ancrez la tuyauterie du Control Dial et de l'inverseur conformément aux règles de l’industrie.

    210312_Standard_install_diverter_bracket_anchor.eps

  3. Uniquement valable pour l’installation Ethernet orbitale

    220311_Panel_ethernet_connector_comp_overview.eps

    Dévissez le support d’antenne.

    241218_Hatch_LK_Install_Ethernet_remove_antenna.eps

  4. Installez le connecteur Ethernet.

    241218_Hatch_LK_Install_Ethernet_connector.eps

  5. Branchez le tuyau sur le raccord.

    241218_Hatch_LK_Install_Ethernet_flex_hose.eps
