Installation

[en] Install Tank
  1. [en] Before drilling, make sure the components fit and that the overflow outlet on the Tank is located at a higher point than the drain.

    240112-Fit_component_in_commode_Tank.eps
  2. [en] Pre-drill holes for the Tank fastening kit.

    Attention

    [en] Make sure the two holes are vertically aligned to ensure the Tank is not tilting.

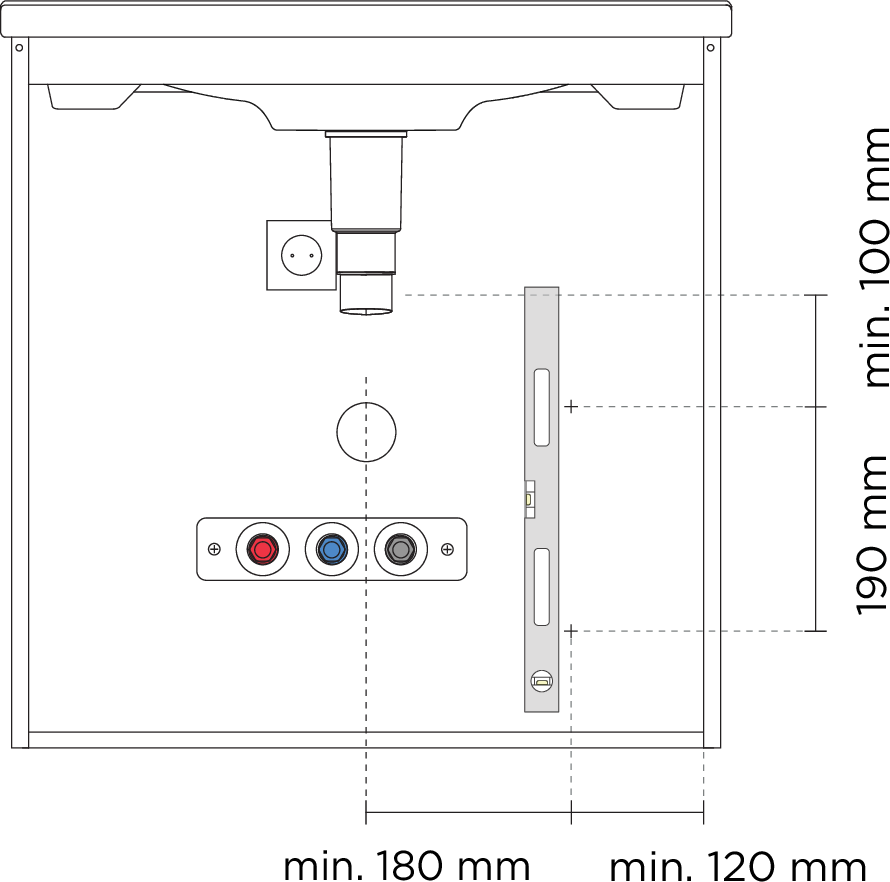

    231009_Tank_fastening_kit_measurements.eps
  3. [en] To avoid damaging the Tank unit, make sure not to over tighten the screws.

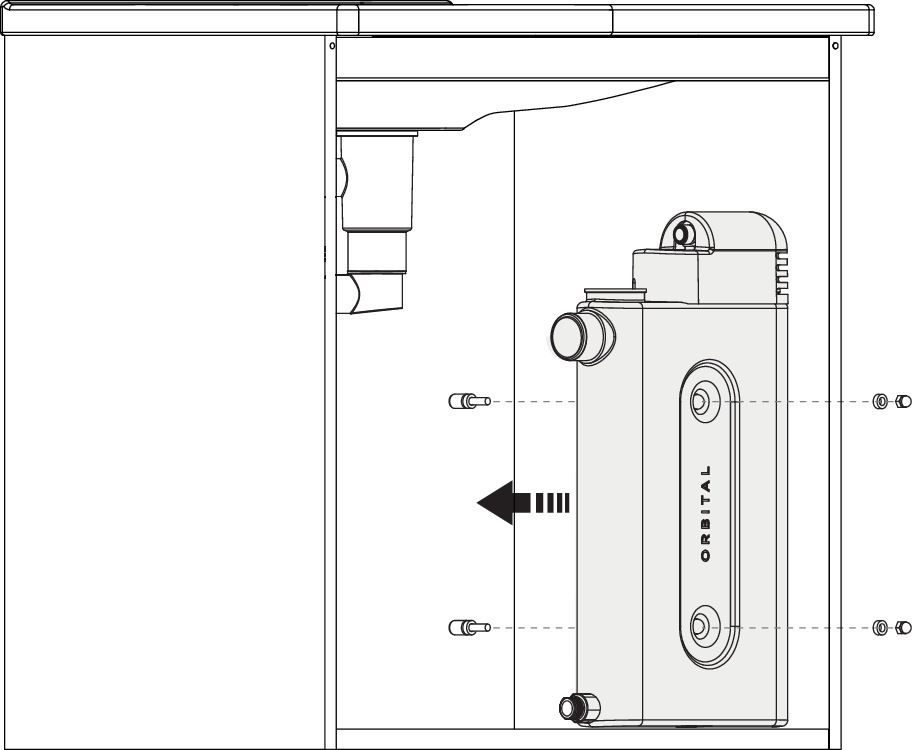

    231009_Attach_tank.eps
