Installation

[en] Install Wall Box
210304_Remote_Cabinet_install_comp_overview.eps

  1. [en] Punch out one hole in the sheet metal on one of the sides of the Wall Box, depending on the installation scenario.

    210701_Remote_Cabinet_wall-integrated_inlet_holes_overview.eps
    Figure 41. [en] Only valid for Orbital Audio

    [en] Punch out holes in the perforated plate for the exciter cable and antenna.

    [en] Only valid for Orbital Audio

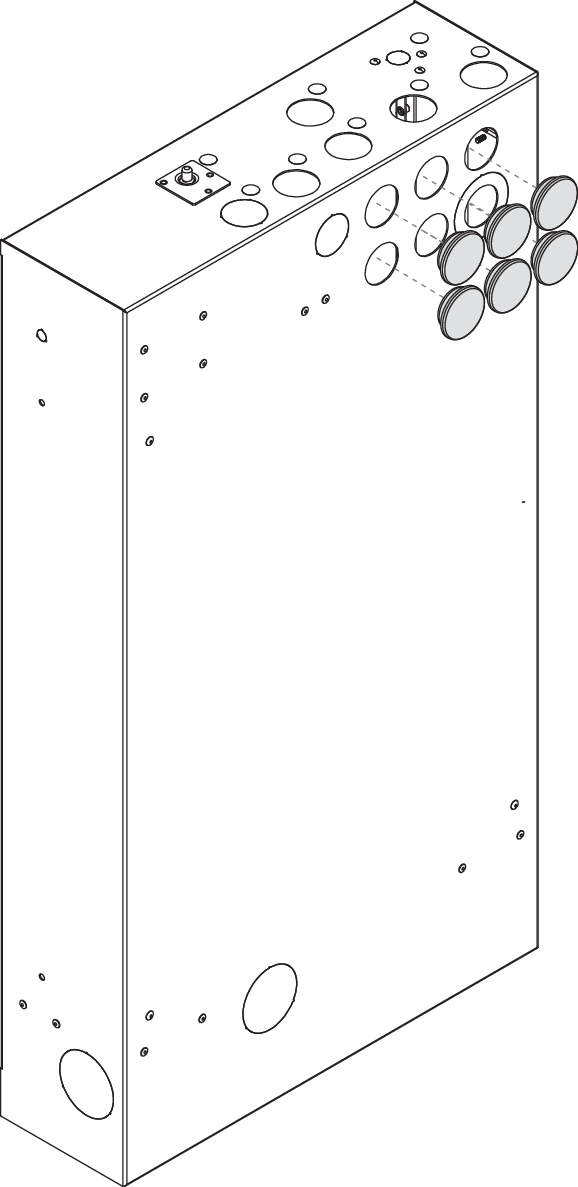

  2. [en] Cover the unused holes in the back of the Wall Box with plastic lids.

    210701_Remote_Cabinet_wall-integrated_inlet_holes_cover.eps

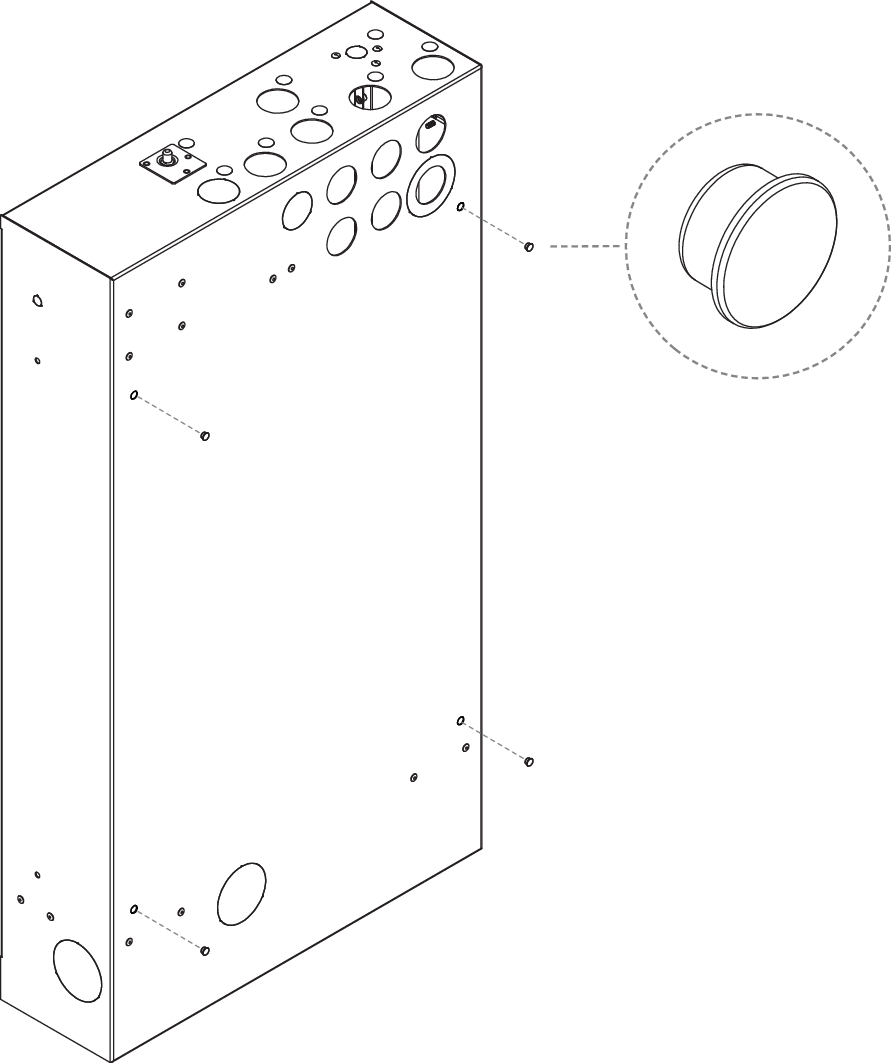

  3. [en] Cover the unused screw holes in the back of the Wall Box with the provided LKS plugs.

    210701_LKS_Plugs.eps

    [en] x4

    [en] LKS Plug

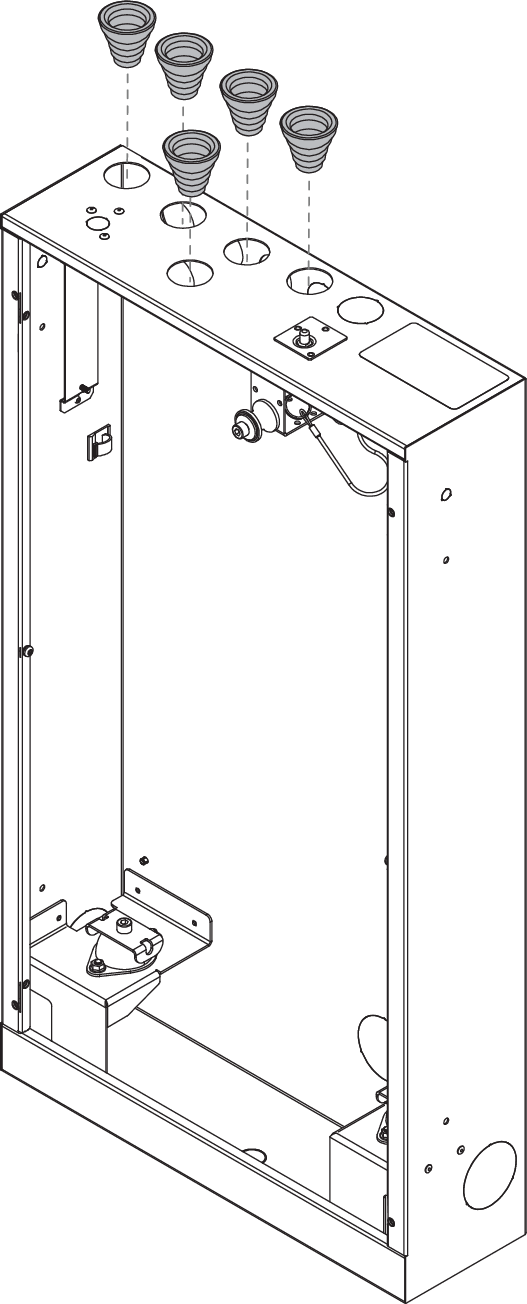

  4. [en] Attach the pipe grommets.

    240220_Hatch_attach_cones.eps

  5. Note

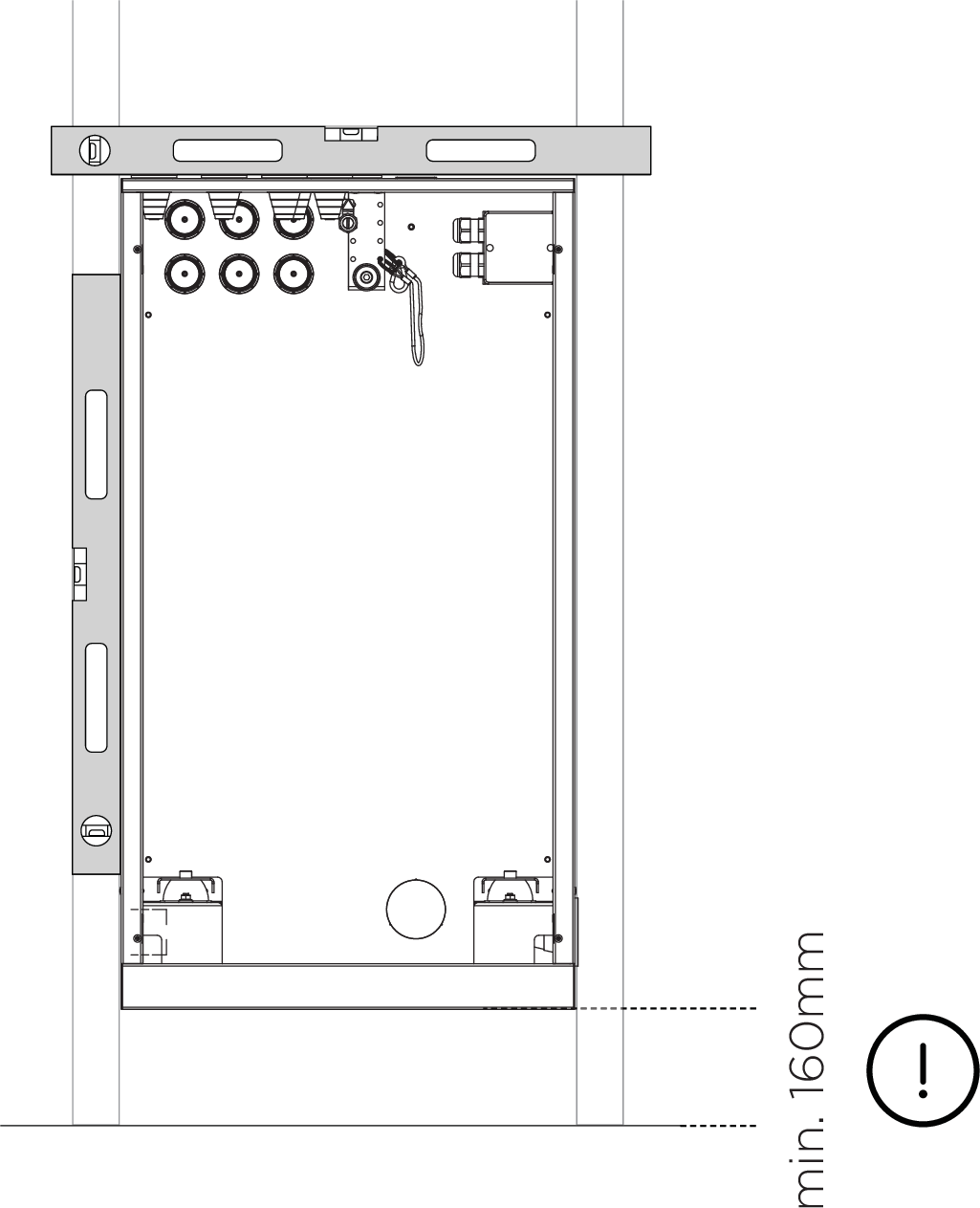

    [en] The weight of the Core is approx. 25 kg. The wall construction must be able to support this load.

    211102_Hatch_install_millimeter.eps

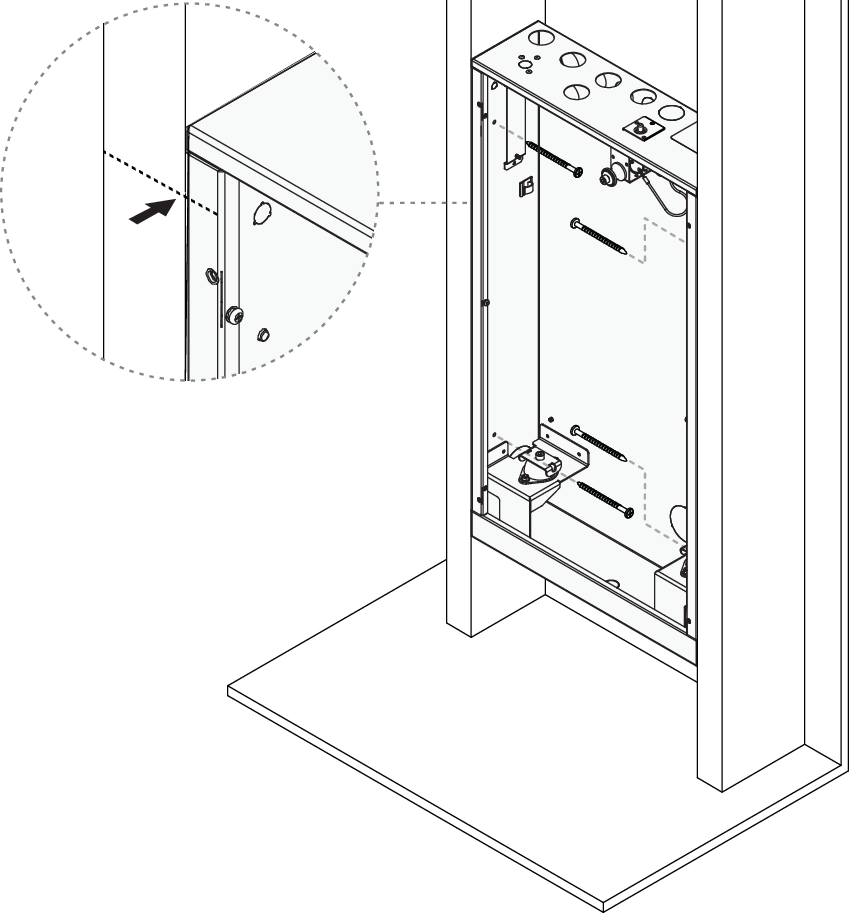

  6. [en] Mount the Wall Box in line with the front of the studs.

    Note

    [en] Two variants of screws are included in the kit from LK, short and long, depending on the wall.

    210104_Remote_wall_int_installation_2.eps

    [en] x4

    [en] Pan head stainless steel screw
